GB/T 4Cr13 Stainless Steel
4Cr13 is a type of stainless steel that is commonly used in the manufacturing of plastic molds and other tooling applications. It is known for its high corrosion resistance, good polishability, and excellent wear resistance. This material is often used in the production of injection molds, extrusion dies, and other precision tooling components.
- HONGXIN
- DAYE
- 30 DAYS
- 8000 TONS/MONTH
- Information
GB/T 4Cr13 Stainless Steel
1. GB/T 4Cr13 Stainless Steel Typical applications
Cutting tools: Scalpe, kitchen knives, industrial cutting blades
Molds: plastic injection molds, die casting molds
Mechanical parts: bearings, pump shafts, valves
Other: food processing equipment, measuring tools
2. GB/T 4Cr13 Stainless Steel Equivalent:
| Country | China | Japan | Germany | USA |
| Standard | GB/T 1299 | JIS G4404 | DIN EN ISO4957 | ASTM A681 |
| Grade | 4Cr13 | SUS420J2 | X40Cr14/1.2083 | 420 |
3. GB/T 4Cr13 Stainless Steel Chemical Composition(%):
| Grade | C | Si | Mn | P/S | Cr | Mo | V | Ni |
| 4Cr13 | 0.35-0.45 | ≤0.60 | ≤0.80 | ≤0.03 | 12.0-14.0 | / | / | ≤0.60 |
| SUS420J2 | 0.26-0.40 | ≤1.00 | ≤1.00 | ≤0.03 | 12.0-14.0 | / | / | ≤0.60 |
| X40Cr14 | 0.36-0.45 | ≤1.00 | ≤1.00 | ≤0.03 | 13.0-14.5 | / | / | ≤0.60 |
| 1.2083 | 0.38-0.45 | ≤1.00 | ≤1.00 | ≤0.03 | 12.5-13.5 | / | / | ≤0.30 |
| 420 | 0.15-0.40 | ≤1.00 | ≤1.00 | ≤0.03 | 12.0-14.0 | / | / | ≤0.60 |
4. GB/T 4Cr13 Stainless Steel Heat treatment
Annealing:
-Heat to 750~800℃, with hold at minimum rate for 3 hours.
-Furnace cooling.
Stress relieving:
To be carried out after machining and before the final heat treatment.
Heating to 600~650°C for 2 hours.
Hardening:
Preheating to 600~700℃;
- Austenitizing at 990~1040℃
- Oil or thermal bath cooling at 500~550℃, then oil cooling according to the steel shape and size.
Quenched hardness: HRC 52~56
Tempering:
To be carried out after hardening according to the required hardness; at 170-270℃ in order to match hardness and resistance to corrosion; permanence for at least 2 hours;
Tempering must be repeated at least twice at a temperature 30 ℃ lower than the previous. Cooling in air.
5: GB/T 4Cr13 Stainless Steel overviews
| Size | Round | Dia 12-500mm | |
| Plate/Flat/Block | Thickness 8mm-300mm | ||
| Width 210mm-710mm | |||
| Process | EAF+LF+VD+Forged+Heat treatment(optional) | ||
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | ||
| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | ||
| Delivery condition | Forged; Hot rolled; Cold drawn | ||
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | ||
| Payment terms | T/T;L/C;/Money gram/ Paypal | ||
| Trade terms | FOB; CIF; C&F; etc.. | ||
| Packing | Standard Packages, or as Customers Request | ||
| Delivery time | 30-45 days | ||

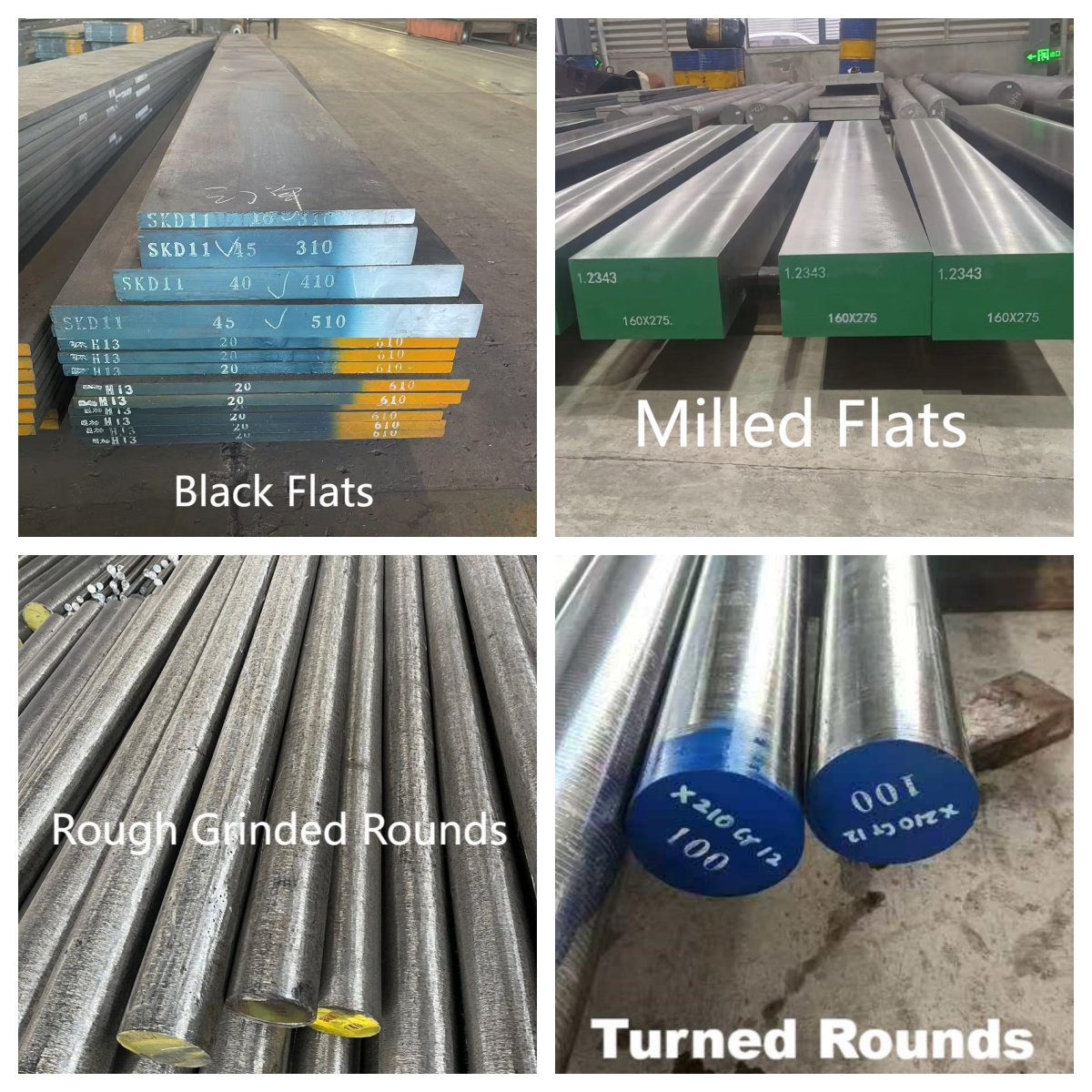

6: Delivery condition
For hot forged round bar: usually the delivery condition is hot forged, annealed, rough grinded or turned surface.
For hot rolled round bar: usually the delivery condition is hot rolled, annealed, turned surface.
For hot forged plate: usually the delivery condition is hot forged, annealed, milled surface.
For hot rolled plate: usually the delivery condition is hot rolled, annealed, black surface.

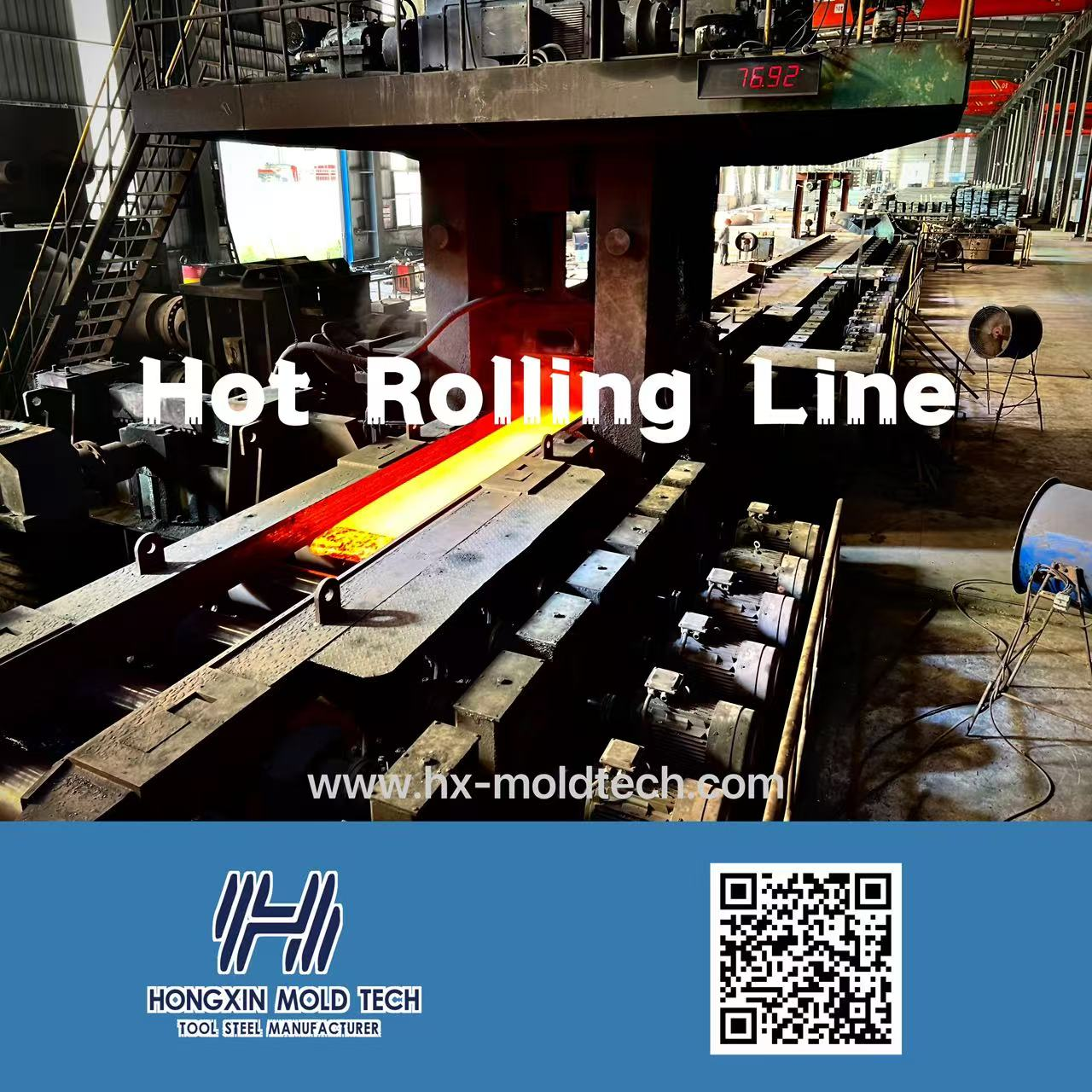

Hongxin Mold Tech Co.,Ltd. owns 1 set of Hot Rolling Production Line at size range flats 8-80*210-710mm, rounds 16-50mm Dia.

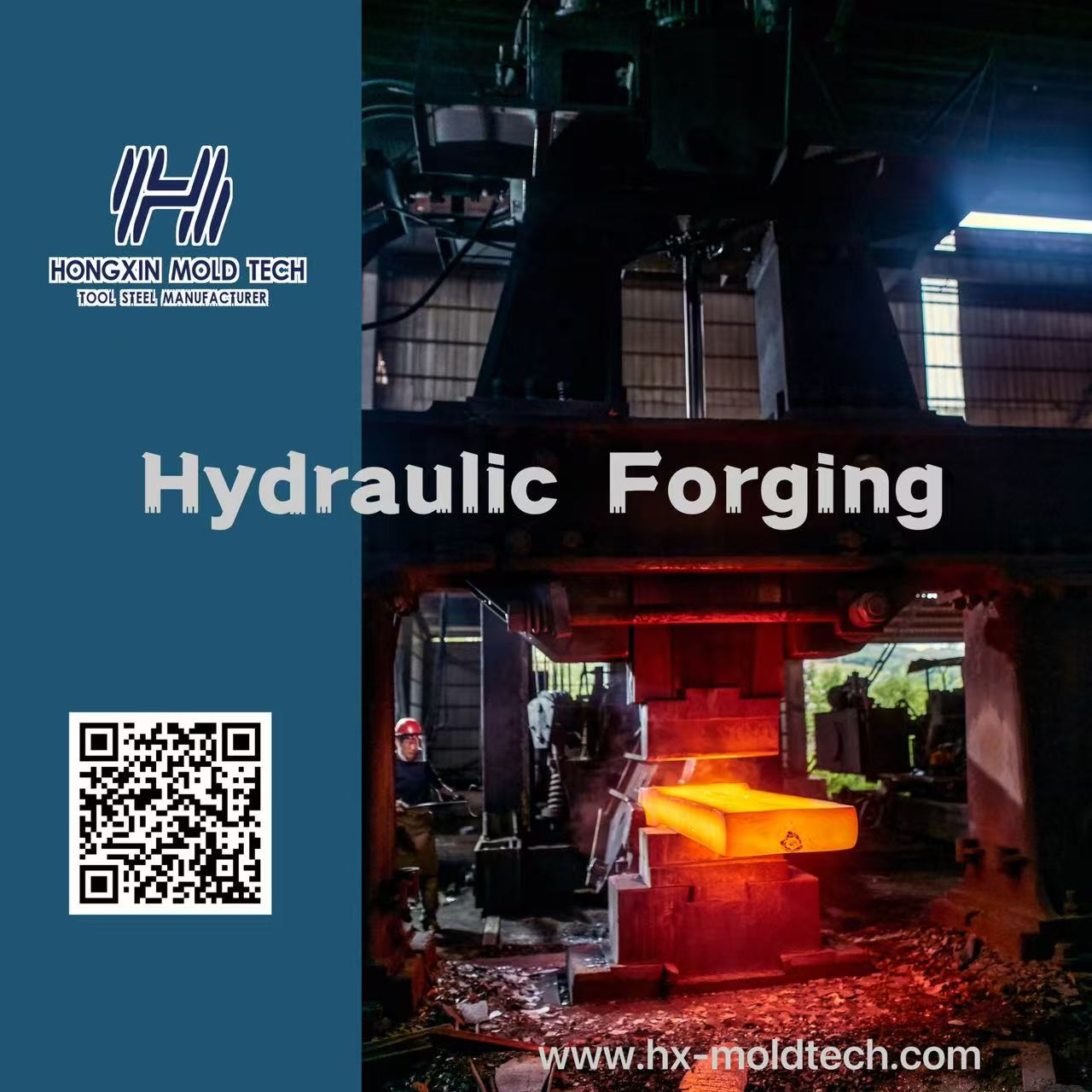

12 sets of Hydraulic Forging Hammers from Power 560kgs to 6000kgs which could cover flats 40-300*210-710mm.
8 sets of EF+LF+VD
5 sets of ESR
9 sets of Milling Machines
10 sets of Turning Lathes
6 sets of Precision Milling Machines.
CERTIFICATION: GB/T19001-2016/ISO9001:2015
Products' List
Packaging&Shipping
Q1:Are you trading company or manufacturer ?
We are the biggest tool steel factory at Daye & Huangshi. We can provide a wide range of steel products.
Q2:What is alloy steel round bar export packing?
Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.
Q3.What is your MOQ?
We accept small order,if it is stock,any quantities can be accepted.
Q4.What is your lead time?
Depends actual order,around 20-35 days,or negotiation.
Q5.Can you supply sample?
Yes,we can.Sample fee according to your size.
Q6:What certificates do you have?
ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate
Q7: How can I get your quotation as soon as possible?
The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement,we will work out a best price soon.
