1.2085 Quenched and Tempered Stainless Steel
1.2085 stainless steel belongs to cold working tool steel, also equivalent to X33CrS16, is a versatile tool steel that contains a high percentage of chromium. The high chromium content provides it excellent corrosion resistance properties.
- HONGXIN
- DAYE
- 30 DAYS
- 8000 TONS/MONTH
- Information
1: 1.2085 Stainless Steel introduction
1.2085 grade martensitic tool steel is easy to machine and corrosion resistant, a pre-sulphurized (300) corrosion resistant mold steel. 1.2085 is a mold steel with 16% Cr, which has improved corrosion resistance due to the addition of chromium. In addition, a specific sulfur improves the machinability response. This steel is often used for mold steel applications, including brackets or support plates that undergo wet machining or wet storage. The grade is also used in the manufacture of corrosive materials such as PVC.
2: 1.2085 Stainless Steel Equivalent
| Country | China | Japan | Germany | USA | UK |
| Standard | GB/T 1299 | JIS G4404 | DIN EN ISO4957 | ASTM A681 | BS 4659 |
| Grade | 3Cr17+S | SUS420F | 1.2085/X33CrS16 | / | / |
3: 1.2085 Stainless Steel Chemical Composition
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni |
| SUS420F | 0.26-0.40 | ≤1.00 | ≤1.00 | 0.06 | ≥0.15 | 12.0~14.0 | ≤0.6 | ≤0.6 |
| 1.2085 | 0.28-0.38 | ≤1.00 | ≤1.40 | ≤0.03 | 0.05-0.10 | 15.0~17.0 | / | 0.1-0.6 |
4: 1.2085 Stainless Steel Mechanical Properties
Tensile strength σb (MPa)：≥1100
Yield strength σ0.2 (MPa)：≥905
elongation δ5 (%)：≥10
area of reduction ψ (%)：≥21
hardness：≤320HB
5: 1.2085 Stainless Steel Overviews
| Size | Round | Dia 12-500mm |
| Plate/Flat/Block | Thickness 8mm-300mm | |
| Width 210mm-710mm | ||
| Process | EAF/ESR+LF+VD+Forged/Rolled+Heat treatment(optional) | |
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | |

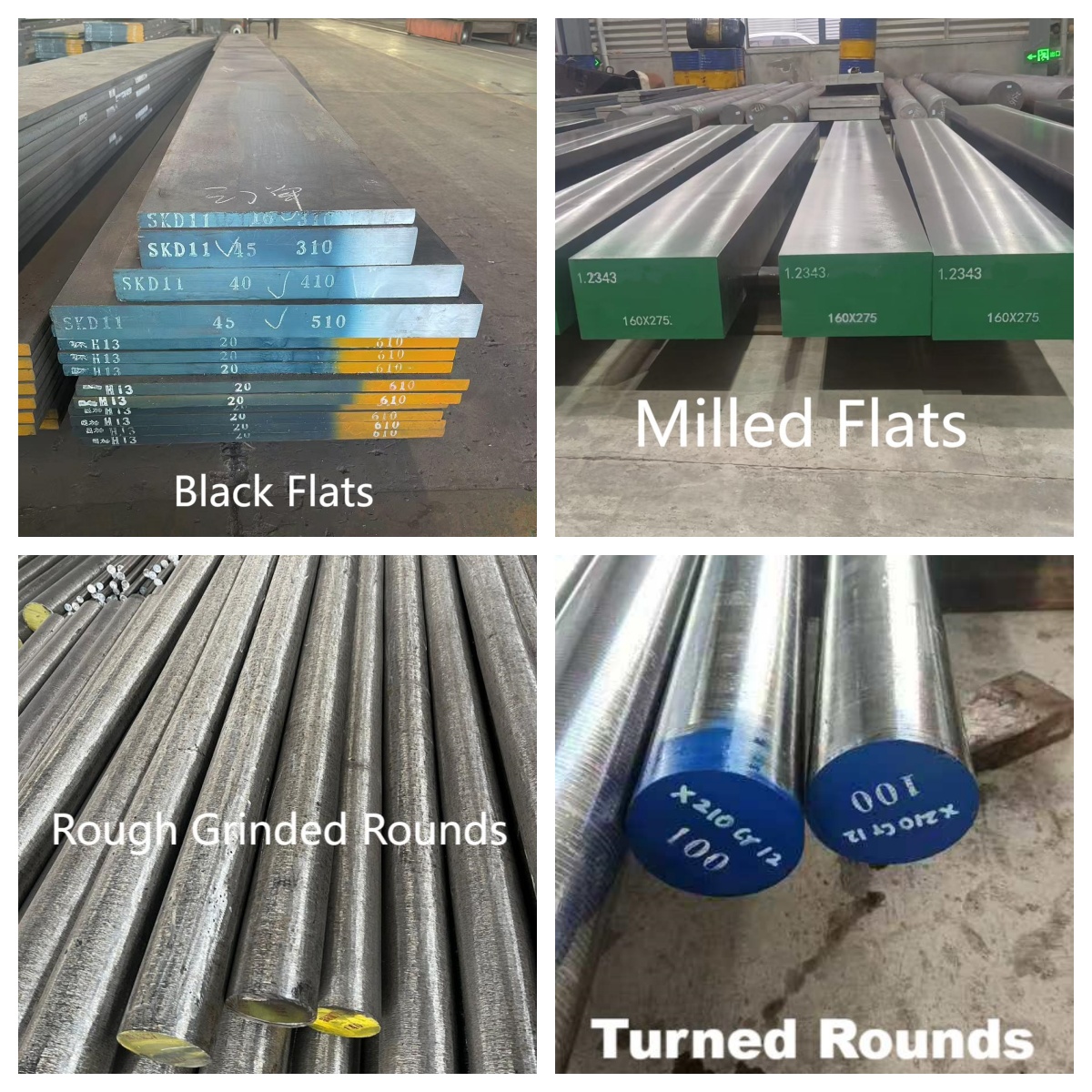

| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | |
| Delivery condition | Forged; Hot rolled; Cold drawn | |
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | |
| Payment terms | T/T;L/C;/Money gram/ Paypal | |
| Trade terms | FOB; CIF; C&F; etc.. | |
| Delivery time | 30-45 days | |
6: Delivery condition
For hot forged bar, usually the delivery condition is hot forged, annealed/QT rough turned/Black surface.
For hot rolled bar, usually the delivery condition is hot rolled, annealed/QT, Black surface.
For hot forged plate, usually the delivery condition is hot forged, annealed/QT, milled surface.
For hot rolled plate, usually the delivery condition is hot rolled, annealed/QT, black surface.
Company Main Products:(If you do not find the product you need, please contact us)
Cold Work Tool Steel | DIN 1.2080,DIN 1.2379,DIN 1.2436,DIN 1.2210,JIS SKS3,AISI O2 |
Hot Work Tool Steel | H13,DIN 1.2714,DIN 1.2767,DIN 1.2344(H13),DIN 1.2713 |
Engineering Steel | AISI 1020,AISI 1045,AISI1050,AISI 5140,AISI 4130,AISI 4140(40CrMo4),AISI 4340, DIN 1.5919,AISI 8620,S235JR,S355JR |
Plastic Mould Steel | P20,P20+S,P20+Ni,DIN 1.2083,DIN 1.2316,DIN 1.2085 |
Spring Steel | AISI 9260,AISI 5160,AISI 6150,65MN,55CrMnA |
Stainless Steel | 316L,201,301,304,316,410,420,430,431,440C,SUS630(DIN1.4542) |
High Speed Steel | DIN 1.3343(M2),DIN 1.3243(M35),DIN 1.3247 |

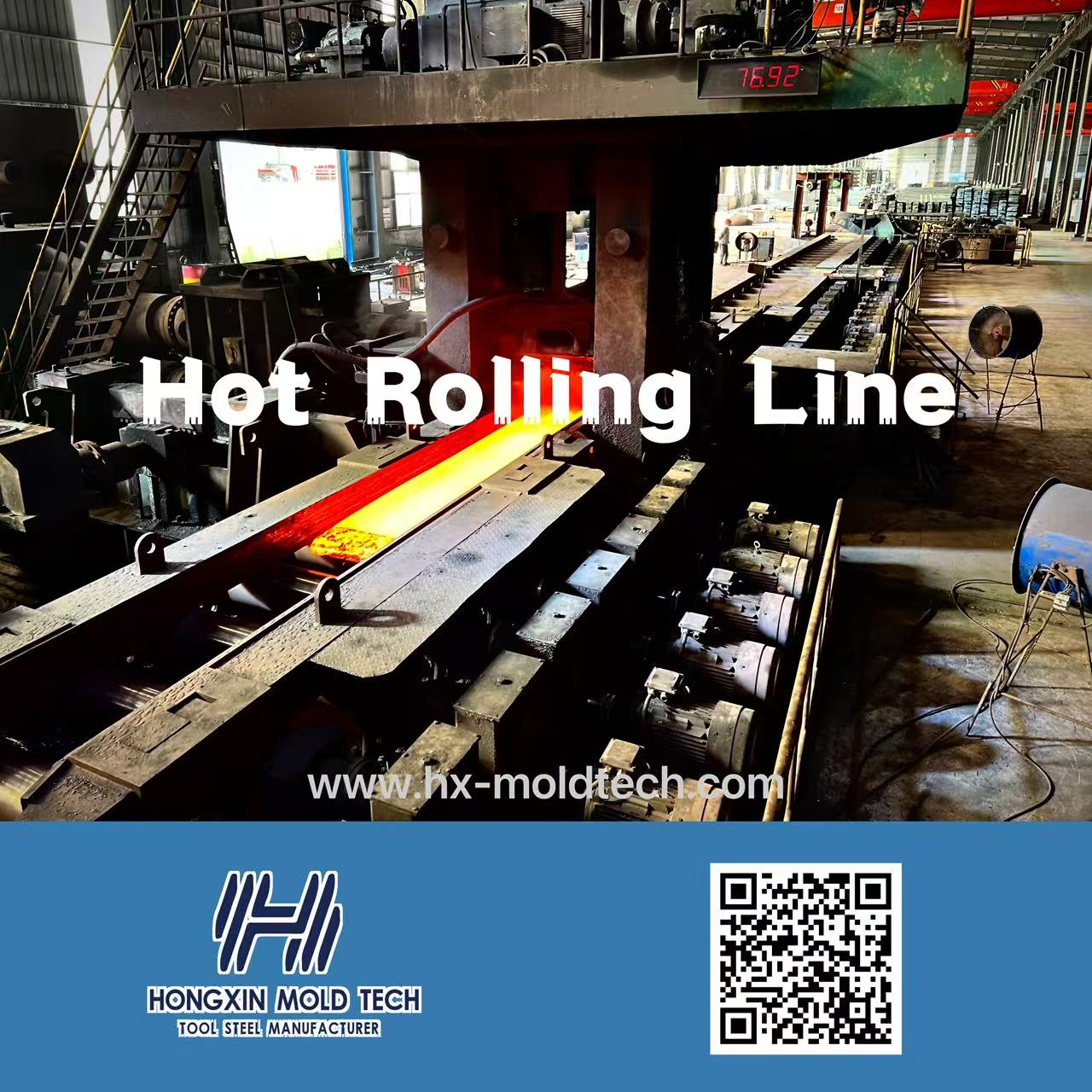

Hongxin Mold Tech Co.,Ltd. owns 1 set of Hot Rolling Production Line at size range flats 8-80*210-710mm, rounds 16-50mm Dia.

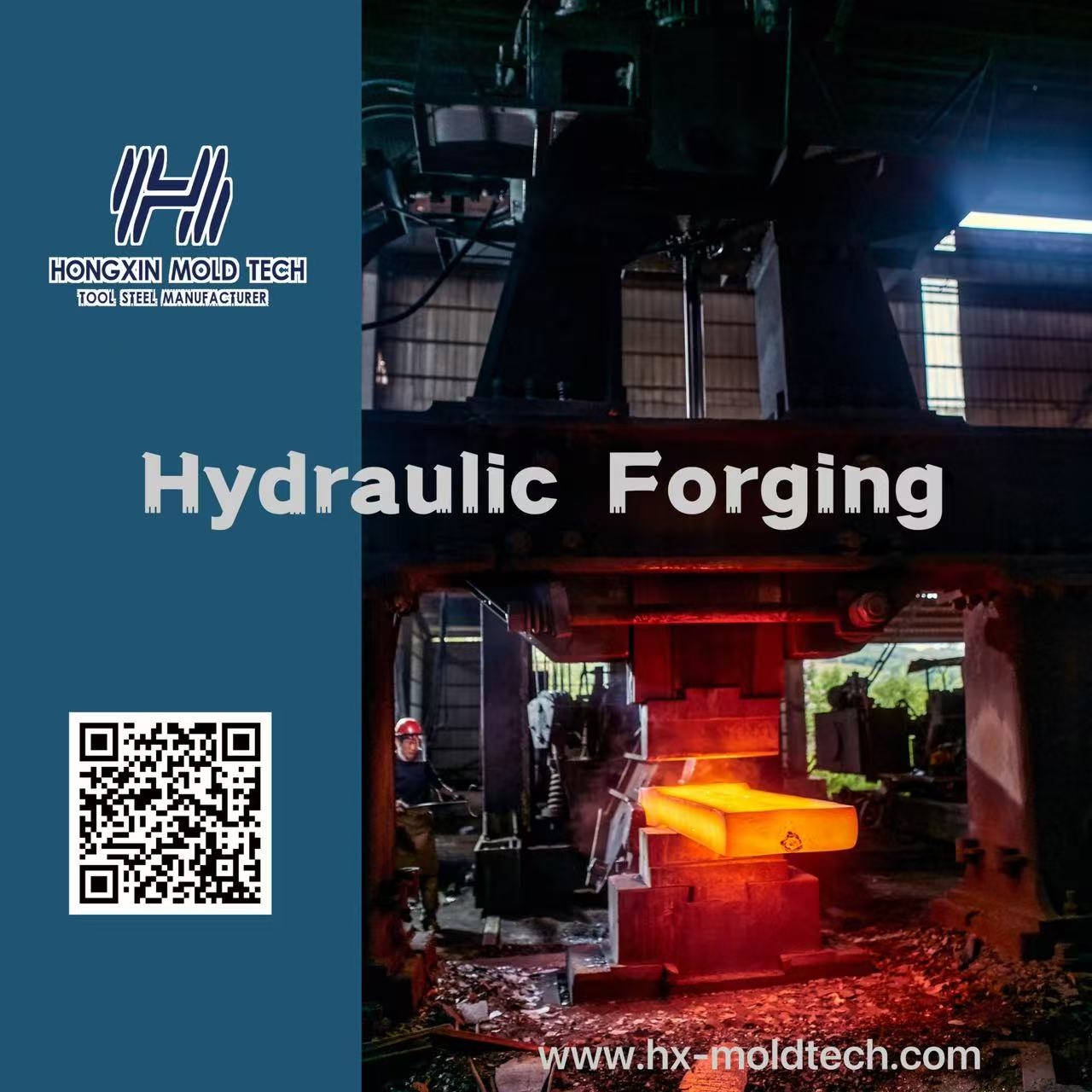

12 sets of Hydraulic Forging Hammers from Power 560kgs to 6000kgs which could cover flats 40-300*210-710mm.
8 sets of EF+LF+VD
5 sets of ESR
9 sets of Milling Machines
10 sets of Turning Lathes
6 sets of Precision Milling Machines.
CERTIFICATION: GB/T19001-2016/ISO9001:2015
