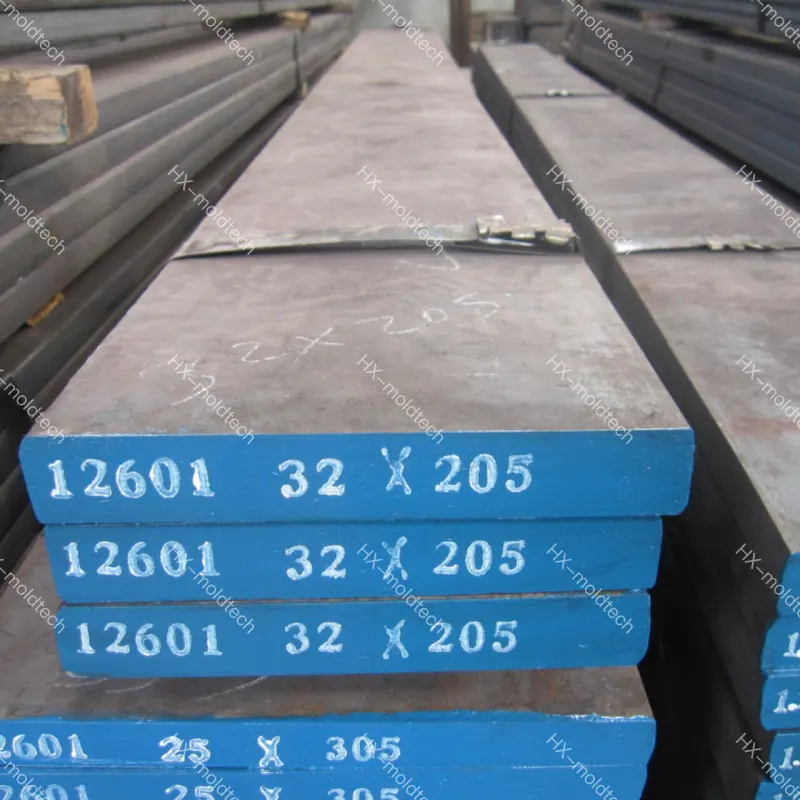

DIN 1.2601 Cold Worked Tool Steel
Superior Abrasion Resistance
DIN 1.2601’s chromium carbides deliver 3-4 times higher wear resistance than standard low-alloy steels, making it ideal for high-load applications like silicon steel stamping dies and cold shear blades.
Precision Heat Treatment
The steel’s oil-quenching process achieves uniform hardness (≥58 HRC) with minimal distortion (<0.05%), ensuring precision for intricate tools like deep drawing molds.
Versatile Industrial Adaptability
From automotive fixtures to cutting tools, DIN 1.2601 adapts to diverse applications. Its thermal stability (up to 520°C) and polishability enhance performance in both cold work and moderate high-temperature environments.
- HONGXIN
- 中国
- 30DAYS
- 8000TONS/MONTH
- Information
X165CrMoV12 | 1.2601 Cold Work Tool Steel Overview
1. X165CrMoV12 | 1.2601 Cold Work Alloy Tool Steel Introduction
DIN 1.2601 (X165CrMoV12) is a high-performance cold work tool steel renowned for its exceptional wear resistance, thermal stability, and dimensional accuracy. With a composition of 1.45-1.70% carbon and 11.00-12.50% chromium, it forms fine carbides that enhance durability in abrasive environments. Its optimized heat treatment process minimizes distortion, making it ideal for complex tools like stamping dies and thread-rolling tools. Widely used in automotive, aerospace, and manufacturing industries, DIN 1.2601 offers extended tool lifespan and cost-efficiency under extreme conditions.
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | |
| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | |
| Delivery condition | Forged; Hot rolled; Cold drawn | |
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | |
| Payment terms | T/T;L/C;/Money gram/ Paypal | |
| Trade terms | FOB; CIF; C&F; etc.. | |
| Packing | Standard Packages, or as Customers Request | |
| Delivery time | 30-45 days | |
2. DIN 1.2601 Tool Steel Supply Range
| Size | Round | Dia 12-500mm |
| Plate/Flat/Block | Thickness 8mm-300mm | |
| Width 210mm-710mm | ||
| Process | EAF+LF+VD+Forged+Heat treatment(optional) |
3. DIN 1.2601 Tool Steel Chemical Composition& Global Equivalents
| C | Si | Mn | P | S | W | Cr | V |
| 1.55～1.75 | 0.25～0.40 | 0.20～0.40 | 0.030 max | 0.030 max | 0.40～0.60 | 11.0～12.0 | 0.10～0.50 |
| USA | Germany | China | Japan | France | England | Italy | Poland | Czechia | Austria | Sweden | Spain |
| AISI | DIN,WNr | GB | JIS | AFNOR | BS | UNI | PN | CSN | ONORM | SS | UNE |
| X165CrMoV12 | 1.2601 | X165CRMOW12KU | 2310 | X160CRMO |
4. DIN 1.2601 Tool Steel Physical & Mechanical Properties
Physical Properties
| Property | Metric Units |
|---|---|
| Density | 7.8 g/cm³ |
| Thermal Expansion (20-100°C) | 11.8×10⁻⁶/°C |
| Thermal Conductivity | 25-28 W/(m·K) |
Mechanical Properties
| Property | Metric Units |
|---|---|
| Hardness (Quenched & Tempered) | ≥58 HRC |
| Tensile Strength | ≥2300 MPa |
| Impact Toughness (Charpy) | 10-15 J |
5. DIN 1.2601 Tool Steel Heat Treatment
Annealing: Heat to 800-830°C, slow cool to ≤500°C. Final hardness: ≤225 HB.
Quenching: Oil quench from 950-1020°C to achieve ≥58 HRC.
Tempering: Temper at 180-250°C for stress relief and dimensional stability. Double tempering recommended for critical applications.
6. DIN 1.2601 Tool Steel Applications
DIN 1.2601 is ideal for high-stress and precision cold work tooling:
Cold Work Dies: Silicon steel stamping dies, deep drawing molds, and trimming tools.
Cutting Tools: Cold shear blades, thread-rolling dies, and circular saws.
Industrial Components: High-wear guide rails, wear plates, and fixtures.
Why Choose DIN 1.2601?
Longevity: 3-4 times higher wear resistance than low-alloy tool steels.
Precision: Minimal distortion during heat treatment ensures tight tolerances for complex geometries.
7. Key Advantages of DIN 1.2601 Steel
Enhanced Wear Resistance: Dense chromium carbides (Cr₇C₃) provide superior abrasion resistance, ideal for high-load stamping and cutting tools.
Deep Hardenability: Uniform hardness in large cross-sections (up to 400mm) due to optimized manganese and molybdenum synergy.
Thermal Stability: Retains hardness (≥45 HRC) at 520°C, suitable for molds exposed to moderate thermal cycling。
8. Delivery condition
For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.
For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.
For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.
Hongxin Mold Tech Co.,Ltd. owns 1 set of Hot Rolling Production Line at size range flats 8-80*210-710mm, rounds 16-50mm Dia.
12 sets of Hydraulic Forging Hammers from Power 560kgs to 6000kgs which could cover flats 40-300*210-710mm.
8 sets of EF+LF+VD
5 sets of ESR
9 sets of Milling Machines
10 sets of Turning Lathes
6 sets of Precision Milling Machines
CERTIFICATION: GB/T19001-2016/ISO9001:2015
Products' List
Q1:Are you trading company or manufacturer ?
We are the biggest tool steel factory at Daye & Huangshi. We can provide a wide range of steel products.
Q2:What is alloy steel round bar export packing?
Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.
Q3.What is your MOQ?
We accept small order,if it is stock,any quantities can be accepted.
Q4.What is your lead time?
Depends actual order,around 20-35 days,or negotiation.
Q5.Can you supply sample?
Yes,we can.Sample fee according to your size.
Q6:What certificates do you have?
ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate
Q7: How can I get your quotation as soon as possible?
The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement,we will work out a best price soon.
