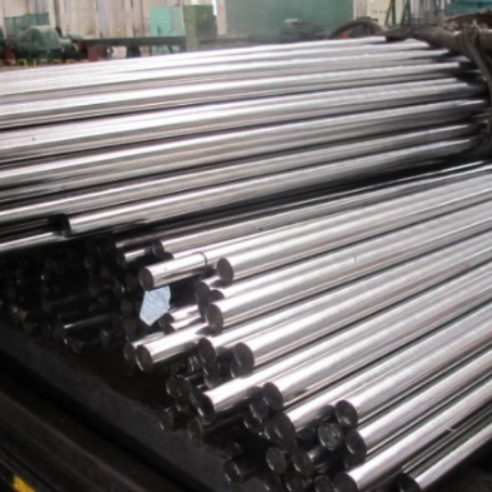

DIN 1.2713 Cold Worked Tool Steel
Superior Impact Resistance
DIN 1.2713’s high nickel content (1.40-1.80%) ensures excellent shock resistance, making it ideal for cold stamping dies and forging tools subjected to cyclic loads.
Adaptable Heat Treatment
Supports multiple tempering strategies: Low-temperature tempering (200-250°C) retains high hardness (52-56 HRC), while high-temperature tempering (430-470°C) balances hardness and toughness for hybrid cold/hot applications.
Cost-Effective Versatility
Offers 30% lower cost than high-alloy steels (e.g., SKD11) while maintaining performance in both cold work (shear blades) and hot work (die-casting molds), reducing multi-process tooling costs.
- HONGXIN
- 中国
- 30DAYS
- 8000TONS/MONTH
- Information
DIN 1.2713 Tool Steel Overview
1. DIN 1.2713 Tool Steel Introduction
DIN 1.2713 (55NiCrMoV6) is a versatile cold work tool steel renowned for its exceptional toughness, wear resistance, and thermal stability. With a composition of 0.50-0.60% carbon and 1.40-1.80% nickel, it achieves a hardness of 52-56 HRC after optimized heat treatment (e.g., oil quenching at 830-860°C + double tempering). Its balanced alloy design allows applications ranging from cold stamping dies to aluminum forging molds, combining durability with cost-effectiveness for industries like automotive, aerospace, and heavy machinery.
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | ||
| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | ||
| Delivery condition | Forged; Hot rolled; Cold drawn | ||
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | ||
| Payment terms | T/T;L/C;/Money gram/ Paypal | ||
| Trade terms | FOB; CIF; C&F; etc.. | ||
| Packing | Standard Packages, or as Customers Request | ||
| Delivery time | 30-45 days | ||
2. DIN 1.2713 Tool Steel Supply Range
| Size | Round | Dia12-500mm |
| Plate/Flat/Block | Thickness 8mm-300mm | |
| Width 210mm-710mm | ||
| Process | EAF+LF+VD+Forged+Heat treatment(optional) |
3. DIN 1.2713 Tool Steel Chemical Composition & Global Equivalents
| Country | China | Japan | Germany | USA | UK |
| Standard | GB/T 1299 | JIS G4404 | DIN EN ISO4957 | ASTM A681 | BS 4659 |
| Grade | 5CrNiMo | SKT4 | 1.2713 | L6/T61206 | BH224/5 |
| C | Si | Mn | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|
| 0,50-0,60 | 0,15-0,40 | 0,50-0,80 | Max 0,030 | Max 0,030 | 0,50-0,80 | 0,15-0,25 | 1,40-1,80 |
4. DIN 1.2713 Tool Steel Physical & Mechanical Properties
Physical Properties
| Property | Metric Units |
|---|---|
| Density | 7.8 g/cm³ |
| Thermal Expansion (20-100°C) | 11.8×10⁻⁶/°C |
Mechanical Properties
| Property | Metric Units |
|---|---|
| Hardness (Quenched & Tempered) | 52-56 HRC |
| Tensile Strength | ≥2300 MPa |
| Impact Toughness (Charpy V-notch) | 20-30 J |
Thermal Stability: Retains hardness of ~300 HB at 500°C.
5. DIN 1.2713 Tool Steel Heat Treatment
Annealing: Heat to 850-870°C, slow cool to ≤500°C. Final hardness: ≤241 HB.
Quenching: Oil quench from 830-860°C to achieve 52-56 HRC.
Tempering: Temper at 200-250°C or 430-470°C. Double tempering recommended for stress relief.
6. DIN 1.2713 Tool Steel Applications
DIN 1.2713 is widely used in high-stress cold and hot work scenarios:
Cold Work Tools: Stamping dies, shear blades, precision punches.
Hot Work Tools: Forging dies, extrusion molds (for Al/Mg alloys).
Industrial Components: High-stress guide rails, wear plates.
Why Choose DIN 1.2713?
Impact Resistance: High nickel content ensures stability under shock loads.
Cost Efficiency: Lower cost than high-alloy steels, ideal for medium-scale production.
7. Delivery condition
For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.
For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.
For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.
Hongxin Mold Tech Co.,Ltd. owns 1 set of Hot Rolling Production Line at size range flats 8-80*210-710mm, rounds 16-50mm Dia.
12 sets of Hydraulic Forging Hammers from Power 560kgs to 6000kgs which could cover flats 40-300*210-710mm.
8 sets of EF+LF+VD
5 sets of ESR
9 sets of Milling Machines
10 sets of Turning Lathes
6 sets of Precision Milling Machines.
CERTIFICATION: GB/T19001-2016/ISO9001:2015
Products' List
Q1:Are you trading company or manufacturer ?
We are the biggest tool steel factory at Daye & Huangshi. We can provide a wide range of steel products.
Q2:What is alloy steel round bar export packing?
Usually bundling for large diameter,small diameter bars in bulk or as customer's demand.
Q3.What is your MOQ?
We accept small order,if it is stock,any quantities can be accepted.
Q4.What is your lead time?
Depends actual order,around 20-35 days,or negotiation.
Q5.Can you supply sample?
Yes,we can.Sample fee according to your size.
Q6:What certificates do you have?
ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate
Q7: How can I get your quotation as soon as possible?
The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement,we will work out a best price soon.
